SPARK DETECTOR SYSTEMS TO PROTECT STORAGE SILO FROM RISK OF FIRE

HOME > SPARK DETECTORS > SYSTEM

Simple systems type "A" and "B"

They only perform the alarm and the automatic extinguishing function. For every spark detected the alarm will sound for 3 seconds and the nozzle will spray water for 3 seconds (1-2 liters).
Control panel operates and monitors all the functions of the system:

alarm for every spark detected
alarm for water leakage in the nozzle
duct valve closure and fan stop control
TEST function

The “A” type is the small simple system, suitable for “small” ducts, with diameter up to half a meter. It comprises only one detector and one spray nozzle.
The “B” type is the large simple system, suitable for “large” ducts, with diameter up to one meter. It comprises two detectors and two spray nozzles.

SYS-A
Small simple system
It includes:

SYS-B

Large simple system
It includes:

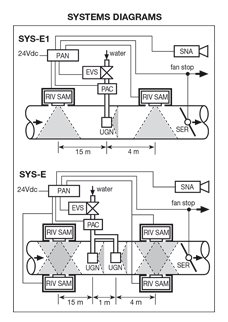

Complete systems type "E1" and "E"

They perform the alarm and the automatic extinguishing function. For every spark detected the alarm will sound for 3 seconds and the nozzle will spray water for 3 seconds (1-2 liters). They also perform the permanent alarm for missing or not sufficient extinction.
Control panel operates and monitors all the functions of the system:

alarm for every spark detected
alarm for water leakage in the nozzle
duct valve closure and fan stop control
TEST function

The “E1” type is the small complete system, suitable for “small” ducts, with diameter up to half a meter. It comprises two detectors (one for the extinguishing and the other for the monitoring functions) and one spray nozzle.
The “E” type is the large complete system, suitable for “large” ducts, with diameter up to one meter. It comprises four detectors (two as a pair for the extinguishing and the other two as a pair for the monitoring functions) and two spray nozzles.
