Detects incandescent bodies flying inside dust collection ducts. It is usually combined with an automatic extinguishing system to extinguish every spark that runs in front of the detector.
Its use is recommended in factories where wood is processed, in textile industry, in cereal and animal feed mills and storage, in the treatment of hides and leather, etc, and where sparks are produced and they can start a fire.
Immediate response time (20-30ms).
Typical sensitivity: 1mm spark at half a meter distance.
“Teletest” feature for remote testing of the detector.
Power supply 24Vdc 50mA.
Designed to operate and monitor all the functions of a system. On front panel it displays the operating state of the system.
MEMORY function: the alarm signaling LEDs of the detectors and of the flow switch “remember” the alarm occurred blinking until the manual reset (RESET). Reverse polarity and overload/short circuit warning lights are also present.
In case of activation of the STOP circuit, the RESET button stops the alarm and restores the normal operating conditions. The TEST button is used to check the system. Cast aluminium case, IP66 protection. Voltage 24Vdc 36W.
Allows to monitor two independent detection points.
The alarm of the spark detector activates the STOP circuit (it turns on the alarm, stops the fan and closes the duct valve) which is held active until manual reset through the RESET button.
The TEST button is used to check the system.
It carries on the front panels alarm, power, overload/short circuit and reverse polarity lights.
Cast aluminium case, IP66 protection.
Voltage 24Vdc 36W.
Audible visual alarm.
Indoor and outdoor use.
IP65 protection.
Power voltage 24Vdc 16mA 0,4W.
Opens water flow to the extinguisher spray nozzle.
Coupling 3/4″ female.
Weatherproof protection with IP65 connector.
Power voltage 24Vdc 6.9W.
To be installed before EVS-811 solenoid valve in order to stop andy dirt flowing inside the main water line.
Coupling 3⁄4” female.
70° hollow cone jet, spray jet in line with water entry.
To be mounted on surface of ductwork.
It is used in applications where it is necessary to avoid bulky in the duct because of the type and the quantity of transported material (eg fibers, paper, leather).
Coupling 3/4″ gas male, case material brass.
Designed to test the RIV-601P/S spark detector window integrity against dust and dirt build-up.
Its use is recommended when internal test cannot be reliable bacause of window being covered or darkened.

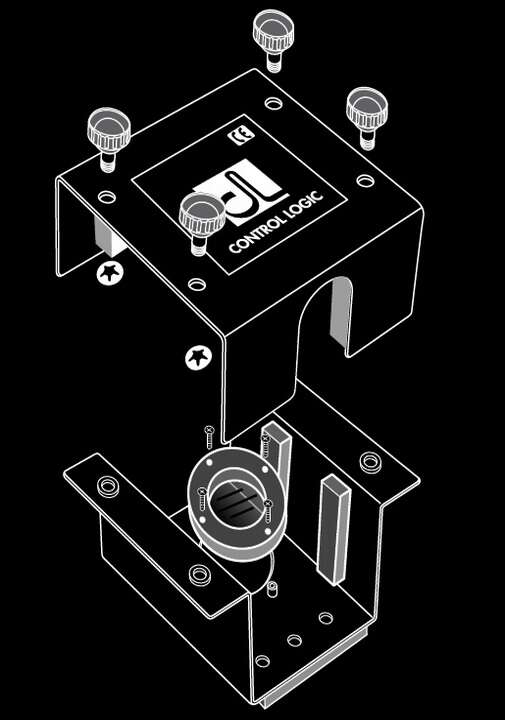

It is mounted like a spark detector, using the same SAM-870 mounting unit, over the duct in the opposite position, so as it will be in front of the spark detector.
Power voltage 24Vdc 50mA.
Lamp with built-in 1Hz flasher.
Wall mounting.
IP65 protection.
Power voltage 24Vdc 3-5mA.
Counts the number of alarms and extinguishing operations.
5 digits, manual reset.
Wall mounting.
Power voltage 24Vdc 0,55W.
